Optex Wireless Outdoor Motion Detector BX-80NR and Visonic MCT-301

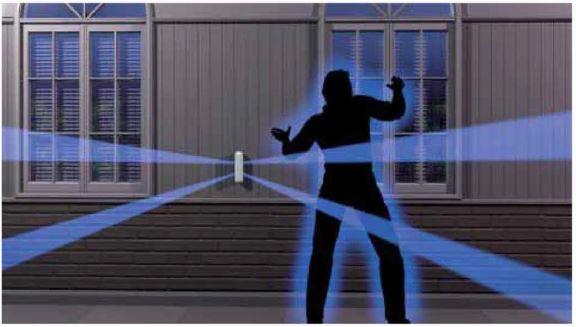

With long, narrow detection areas that extend from both its sides, the battery-powered BX-80NR is specifically designed to be wirelessly wall-mounted centrally on a building. This unique detection pattern covers the building perimeter with a multi-layered, horizontal barrier that detects intruders before they break in. Included on the unit is a backbox that accepts most manufacturers wireless systems, making the BX-80NR a versatile, stable outdoor PIR requiring no running wire. To help reduce false activations, the range can be adjusted so that detection extends only to the end of the building. The unit also has a size-judging function, which helps it discriminate between large and small objects within the detection area.
SPECIFICATIONS
Model | BX-80NR | |
Coverage | 24m (12m on each side) | |
Detection zones | 4 zones (2 zones on each side) | |
Sensitivity | 2.0°C at 0.6m/sec. | |
Detectable speed | 0.3m – 1.5m/s | |
Power supply | 3 – 9VDC lithium or alkaline Battery | |
Current consumption | 3mA(Walktest, LED on) 15µA(Standby) |
|
Alarm period | 2 ± 1 sec. | |
Alarm output | Form C-Solid state switch: 10V DC 0.01A | |
Battery saving time | Approx. 120 sec. or 5 sec. | |
Tamper switch | Form C activates when cover is removed | |
Warm-up period | Approx. 2 min. | |
LED indicator | Disable during normal operation | |
Enable during walktest or LED switch on | ||
Operating temperature | -20°C to +50°C | |
Environmental humidity | 95% max. | |
RF interference | No Alarm 20V/m | |
Mounting height | 0.8m – 1.2m | |
Mounting | Wall | |
Weight | 520g | |
Dimensions (H x W x D) | 235mm x 56mm x 128mm | |
Weatherproof | IP55 |
Compatible with PowerMax™ and all Visonic PowerCode™ wireless panels and receivers.
Available only in 433.9 MHz. Note: Installation Charges apply.
This is not a standalone burglar Alarm. It requires one of the following panels to work together:
Visonic Wireless Burglar Alarm Kit PME (433) KIT
Visonic Wireless Burglar Alarm Kit With GSM PME (433) KIT
