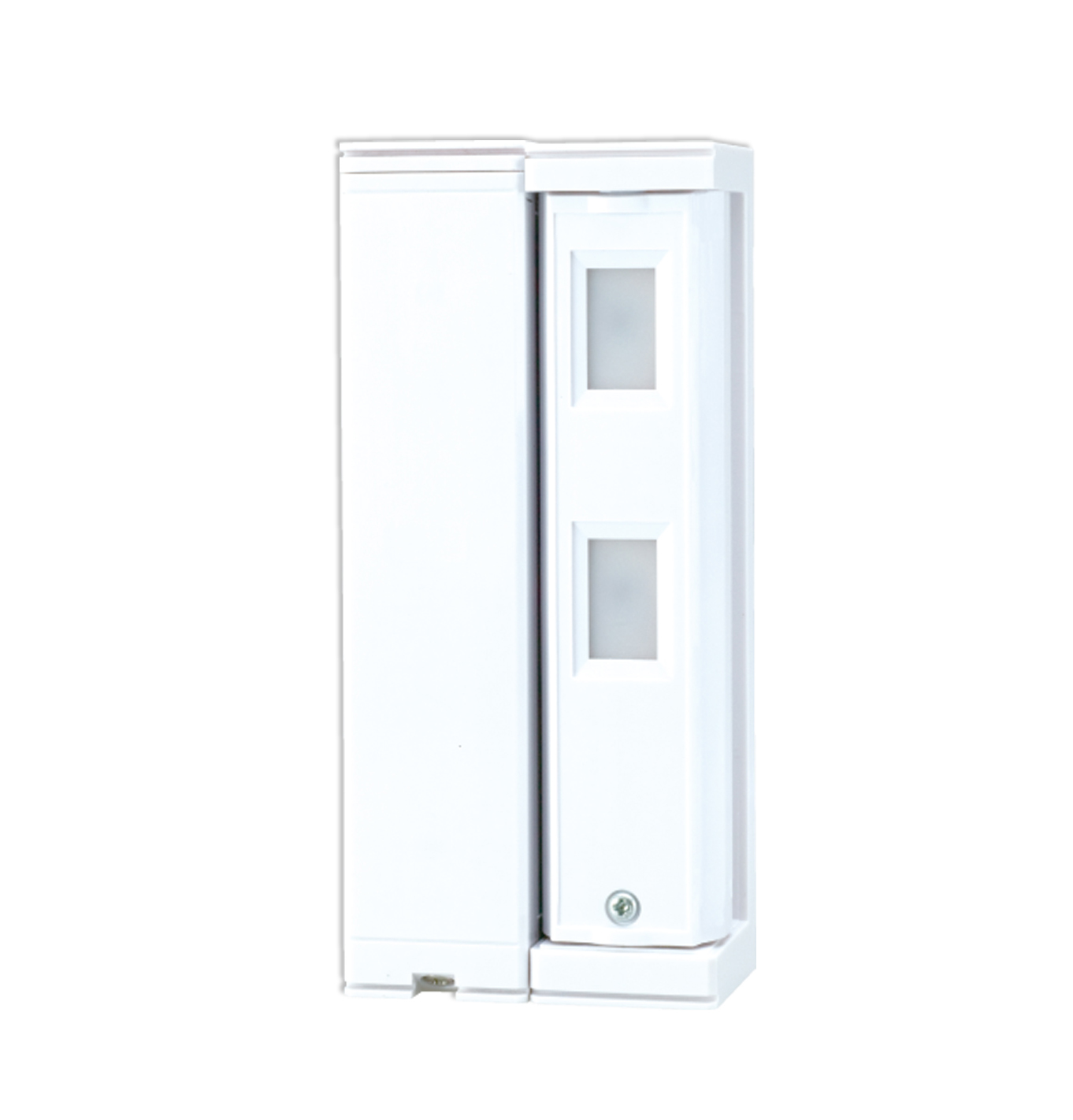

Optex Wireless Outdoor Motion Detector fit FTN-R
SPECIFICATIONS
| Model | FTN-R |
| Detection method | Passive infrared |
| PIR coverage | 5×1m (16’5″×3’3″) |
| Detection length limit | 2 m, 5 m (6’7″, 16’5″) |
| Detectable speed | 0.3 – 1.5 m/s (1′ – 4’11″/s) |
| Sensitivity | 2.0°C (at 0.6 m/s) (3.6°F (at 2’/s)) |
| Operation voltage | 2.5 – 10 V DC |
| Power input | 3 – 9 V DC (Lithium or Alkaline Battery) |
| Current draw | 9μA(at stand-by) / 3mA(max.)(at 3 V DC) |
| Alarm period | 2.0 ±1.0sec. |
| Warm-up period | Approx. 120 sec. (LED blinks) |
| Alarm output | N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.) |
| Trouble output | N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.) |
| LED indicator | Enable: During DIP switch 1 (WALK TEST MODE) or DIP switch 4 (LED) ON Disable: During normal operation Light/Blink: Warm-up, alarm, masking detection (FTN-RAM only) |
| Operation temperature | 20 – +60°C (-4 – +140?F) |
| Environment humidity | 95% max. |
| Weatherproof | IP55 |
| Mounting | Wall (Outdoor, Indoor) |
| Mounting height | 0.8 – 1.2 m (2’7″ – 3’11”) |
| Weight | 190 g (6.7 oz.) |
| Accessories | Connector for POWER and ALARM, connector for TROUBLE, plate nut×2, screw (M3×10 mm)×2, screw (3×20 mm)×4, sponge for transmitter |
*Specifications and design are subject to change without prior notice.
Compatible with PowerMax™ and all Visonic PowerCode™ wireless panels and receivers.
Available only in 433.9 MHz. Note: Installation Charges apply.
This is not a standalone burglar Alarm. It requires one of the Alarm panels to work together
